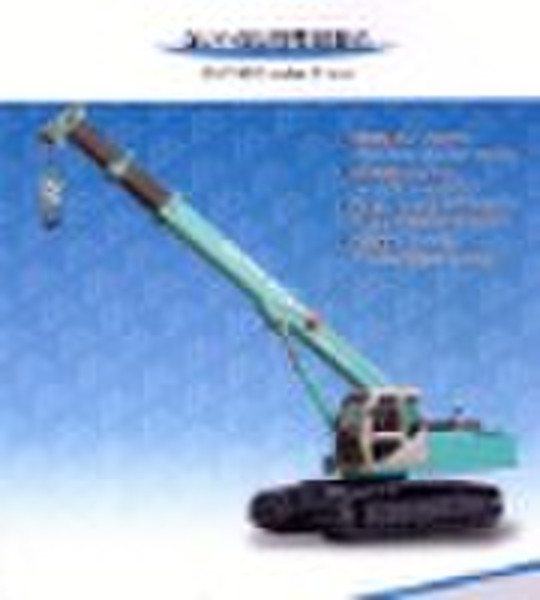

QUY16 Crawler Crane
original price: 50 000 USD
bin zhao
Contact person
Basic Information
| Place of Origin | Shandong China (Mainland) |
|---|---|
| Brand Name | Gainful |
| Model Number | QUY16 |
| Max. Lifting Height | 16.2m |
| Condition | new |
Rated lifting capacity(T) 16 Max.lifting moment at basic boom(kN.m) 480kN.m Max.lifting moment at full extend boom(kN.m) 280kN.m Max.lifting height at basic boom9(m)8.15 Max. lifting height at full extend boom(m)20 Basic boom length(m) 8.4 Full extend boom length(m) 20 Max. lifting speed of the hook(m/min) 16 Engine modelCummins 6BTA5.9-C Rated power(kW/rpm) 125/2100 Chassia type LengthenedXstructure special chassis Track gauge(mm) 2400 Length of track on the ground(mm) 3830 Burl distance of chain rail(mm) 190 Track shoe width(mm)Triangle,950(other track may be selected) Ground clearance(mm) 495 Max grade ability(°) 15 Work environment temperature(°C) -20 +40 Ground pressure(Mpa)0.034 Over dimension(LxWxH)(mm) 10800x3350x3150 Operating weight(kgs)25200
Delivery terms and packaging
Packaging Detail: in bulk ship Delivery Detail: 30 days after reveived deposit
Port: Qingdao
Payment term
Letter of credit
Telegraphic transfer
-
Payment Methods
We accept:
