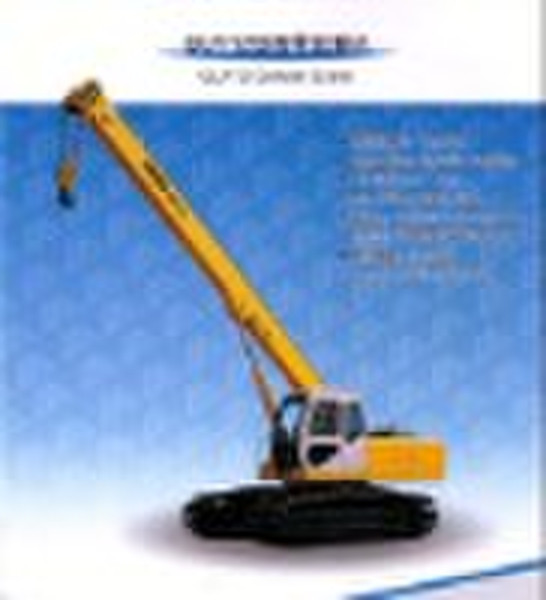

QUY12 Crawler Crane
original price: 50 000 USD
bin zhao
Contact person
Basic Information
| Place of Origin | Shandong China (Mainland) |
|---|---|
| Brand Name | Gainful |
| Model Number | QUY12 |
| Max. Lifting Height | 16.2m |
| Condition | new |
Rated lifting capacity(T) 12 Max.lifting moment at basic boom(kN.m) 360kN.m Max.lifting moment at full extend boom(kN.m) 126kN.m Max.lifting height at basic boom9(m)9.15 Max. lifting height at full extend boom(m)16.2 Basic boom length(m) 9 Full extend boom length(m) 16 Max. lifting speed of the hook(m/min) 24 Engine modelCummins 6BT5.9-C106 Rated power(kW/rpm) 106/2100 Chassia type LengthenedXstructure special chassis Track gauge(mm) 2400 Length of track on the ground(mm) 3650 Burl distance of chain rail(mm) 190 Track shoe width(mm)Triangle,950(other track may be selected) Ground clearance(mm) 495 Max grade ability(°) 20 Work environment temperature(°C) -20 +40 Ground pressure(Mpa)0.027 Over dimension(LxWxH)(mm) 11500x3350x3080 Operating weight(kgs) 19600
Delivery terms and packaging
Packaging Detail: in bulk ship Delivery Detail: 30 days after reveived deposit
Port: Qingdao
